Double Stage PP PE HDPE LDPE Plastic Flakes Pelletizing Line/Granulating Machine

1セット
MOQ
USD, EUR
価格
Double Stage PP PE HDPE LDPE Plastic Flakes Pelletizing Line/Granulating Machine
特徴 ギャラリー 製品の説明 Ratings & Review 見積依頼
特徴
仕様
状態: 新しい
自動グレード: 自動
容量: 400kg/h
プラスチック処理: TPU,EVA,TPEE,PP,PE,PVC,ABS
ネジのデザイン: ダブルスクリュー
モデル番号: ポンド
モーター: シーメンス
インバータ: abb
保証: 2年
電気コンポーネント: シーメンスまたはシュナイダー
梱包方法: 木製とフィルムパッケージ
納期: 45日
ハイライト:

Double Stage Plastic Pelletizing Machine

,

PP PE HDPE LDPE Granulating Line

,

Plastic Flakes Pelletizing Machine with Warranty
基本情報
起源の場所: 張jiagang、江蘇
ブランド名: LANGBO
証明: CE, ISO
モデル番号: LB-80156
お支払配送条件
パッケージの詳細: 標準パッケージ
受渡し時間: 60営業日
支払条件: LC、T/T
供給の能力: 月額10セット
製品の説明

Double Stage PP PE HDPE LDPE Plastic Flakes Pelletizing Line/Granulating Machine


short description

This line is mainly used for producing pellets. Through extruding, making stand, cooling and cutting into pellets, the storage of the pipes raw material is more convenient. In the recent years, the sales market for pellets is also excellent. Our granulating line used including extruder, cooling tank, air knife, pelletizer and vibration sieve. All the components are top-brand quality and long working lifetime.

Process Flow
Raw material+ additive → Mixing → Conveying feeding → hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing


Specification

Model
Diameter(mm)
L/D
Speed(rpm)
 Power(kw)
Output(kg/h)
LB40-B
41
24-80
~600
 30~37
100~130
LB52-B
 51.4
24-80
~600
55~75
150~250
LB65-B
 62.4
24-80
~600
90~110
300~400
LB75-B
 71
24-80
~600
132~160
400~500
LB85-B
 81
24-80
~600
220~250
700~800
LB90-B
 93
24-80
~600
280~315
900~1000
LB110-B
 110
24-80
~600
400~450


Production Description

Pelletizer
Pelletizers are completely made of AISI 304 stainless steel. Pelletizing blades and die are made of special alloy steels and coatings according to the type of plastic. By mobile parts, maintenance period is minimized. Speed control for pelletizing blades enables changing granule size during operation.

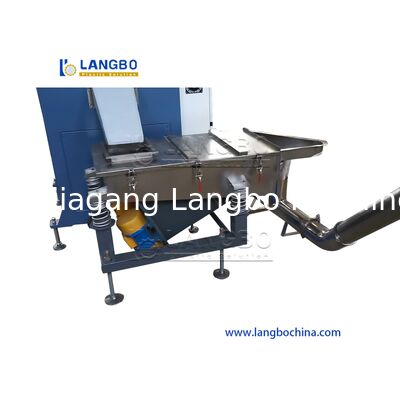

Vibration Sieve
Granules' size controlled by vibration sieve too small or too big granules will be flited out. The only granules, which fit the size requirement will be transported into storage silo by air.

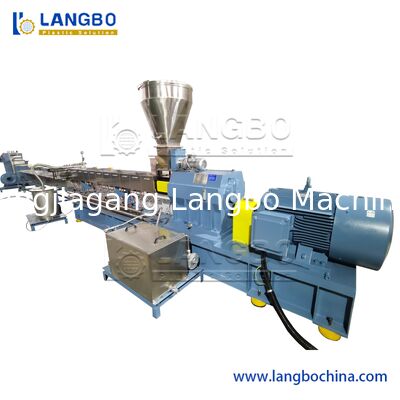

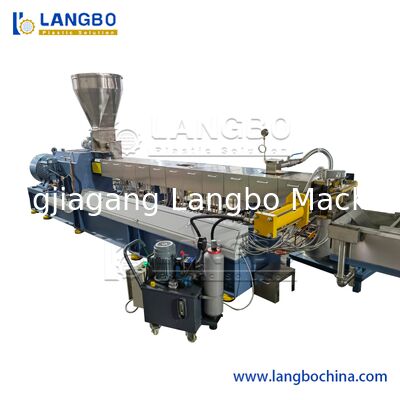

Parallel Twin Screw Extruder
Heavy Load Gearbox for reliable running
High precise screw part for excellent screw building
High quality electrical parts and worldwide famous brand for drive unit
Easy Temperature setting and indication
Degassing section for tailored processing demand

Hydraulic Melt filter Mould
304 Steel screens with tailored mesh size
Hydraulic plate or cylinder filter body available
Bronze heater for high heating efficiency

Water Tank Tempering
Water cycle for evenly temperature distribution and well cooling effect
Strand Holders adjust strand in the water for cooling and out of the water for drying
Advanced manufacture technology for robust structure and precise adjustment

Air Knife
High speed knife for strand dewatering


Double Stage PP PE HDPE LDPE Plastic Flakes Pelletizing Line/Granulating Machine 0Double Stage PP PE HDPE LDPE Plastic Flakes Pelletizing Line/Granulating Machine 1

Double Stage PP PE HDPE LDPE Plastic Flakes Pelletizing Line/Granulating Machine 2Double Stage PP PE HDPE LDPE Plastic Flakes Pelletizing Line/Granulating Machine 3Double Stage PP PE HDPE LDPE Plastic Flakes Pelletizing Line/Granulating Machine 4Double Stage PP PE HDPE LDPE Plastic Flakes Pelletizing Line/Granulating Machine 5
