16mm-63mm PE PP PA Single Wall Corrugated Pipe Machine
製品詳細
| モーター: | シメンス 中国製 | 引き取り: | 2本のベルトの引き取り |
|---|---|---|---|
| カッター: | 鋸のカッター | エクストルーション速度: | 0.8～1m/分 |
| 容量: | 300kg/h | ||
| ハイライト |
16mm-63mm corrugated pipe machine,PE PP PA single wall pipe extruder,corrugated pipe extrusion line with warranty |
||
製品説明
16mm-63mm PE PP PA Single Wall Corrugated Pipe Machine
Short description

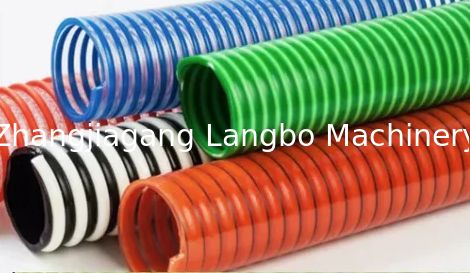

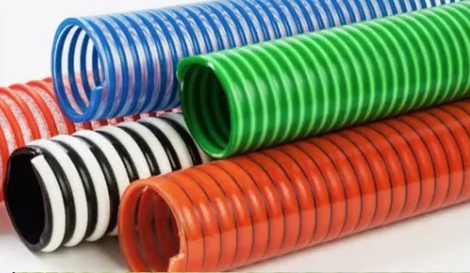

The production is designed for producing flexible corrugated pipes made from PE, PP, or PVC materials. These pipes are widely used for wire protection, drainage, ventilation, and automotive applications. The production line ensures stable performance, high output, and uniform pipe forming through precision temperature control and optimized die design.

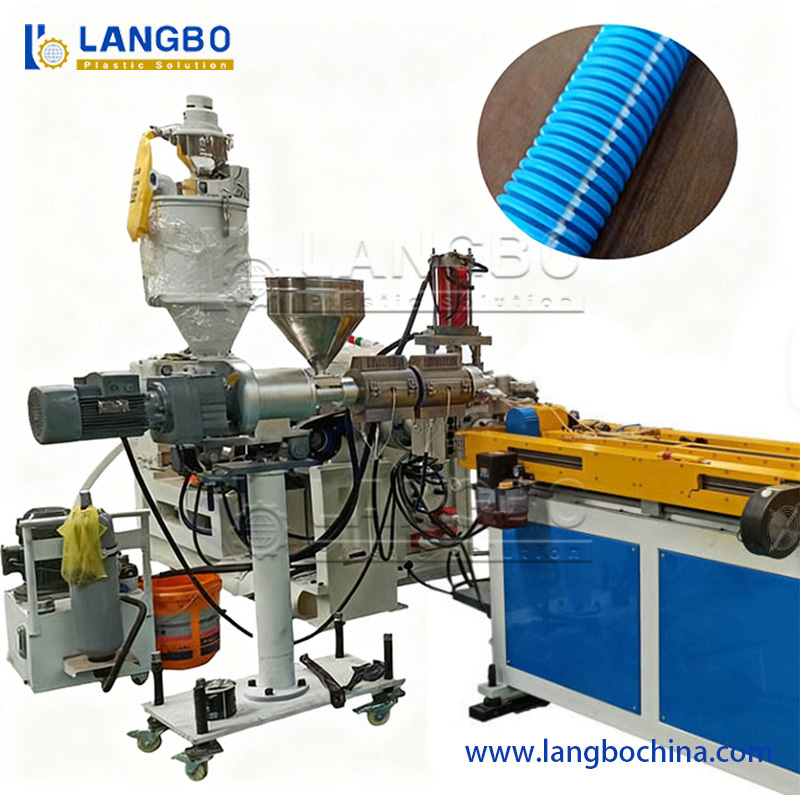

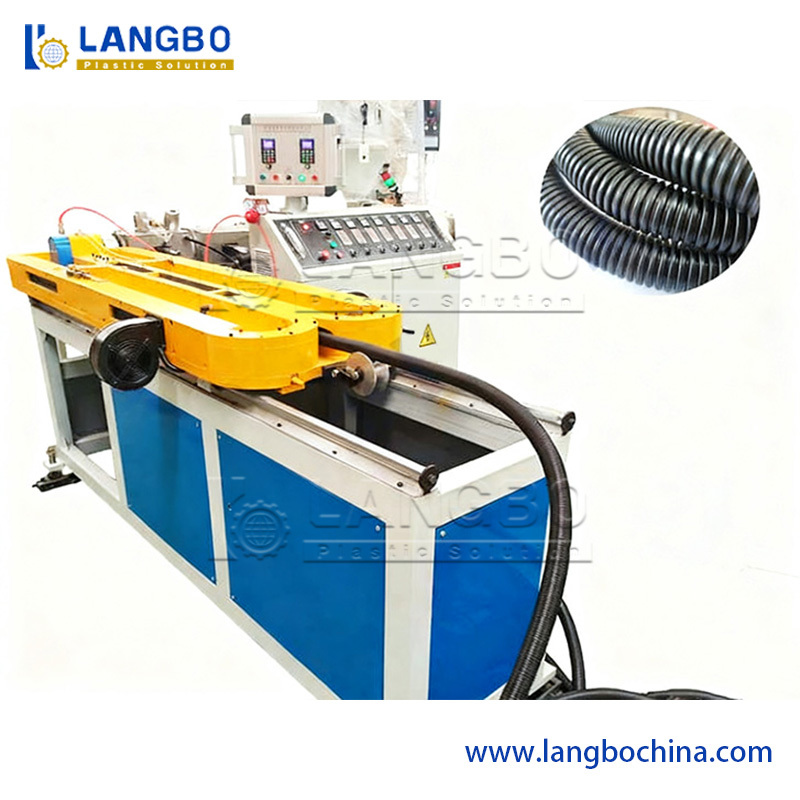

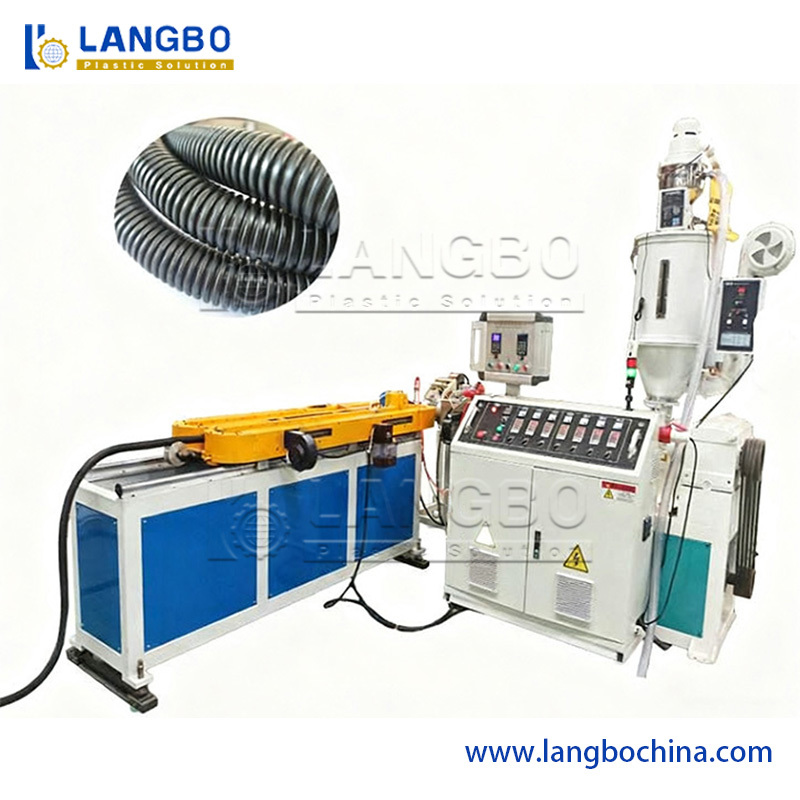

Plastic granules are fed into the hopper and melted in the extruder under controlled temperature and pressure. The molten material is then shaped in the corrugation mould by vacuum or pressure forming. After shaping, the corrugated pipes are water-cooled to stabilize their form. The cooled pipes are automatically cut to the required length and collected by the coiler for inspection and packing.
Specification
|
Model
|
Pipe Diameter Range (mm)
|
Extruder Type
|
Output (kg/h)
|
Main Motor Power (kW)
|
Line Speed (m/min)
|
|
LB-16/32
|
16–32 |
SJ-45
|
40-60
|
15
|
10-15 |
|
LB-32/63
|
32–63
|
SJ-65
|
80-100
|
30 | 8-12 |
|
LB-63/160
|
63–160
|
SJ-75
|
120-180
|
45 | 6-10 |
Technical Features
1. The plastic corrugated machine is designed for producing single or double-wall corrugated pipes with stable performance and precise forming.
2. The feeding system ensures continuous and uniform material input for efficient extrusion.
3. The high-performance single screw extruder provides consistent plasticizing and melting under controlled temperature and pressure.

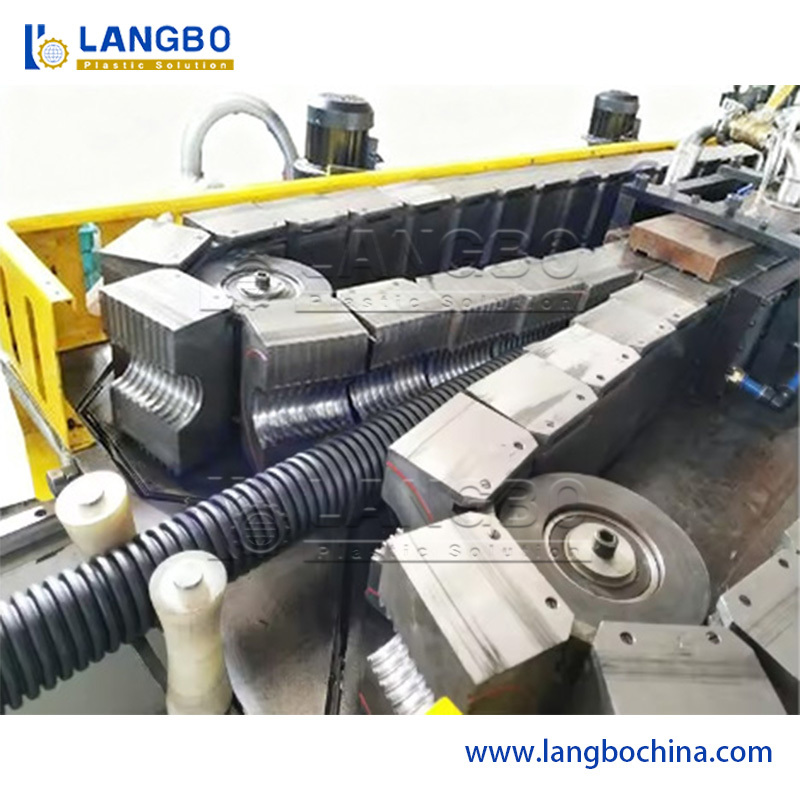

4. The forming unit adopts vacuum or pressure shaping technology to achieve accurate corrugated structure and smooth surface.
5. The water cooling system ensures rapid and even cooling, maintaining product dimensional stability.
6. The automatic cutting unit enables precise length control and smooth cutting surfaces.
7. The coiler automatically collects finished corrugated pipes, improving efficiency and reducing manual handling.
8. The PLC control system allows centralized operation and parameter adjustment, ensuring easy and safe operation.
9. The machine structure is compact, with easy maintenance and fast mold replacement.
10. Equipped with well-known brand electrical components for reliable performance and long service life.
Delivery information
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case
Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
