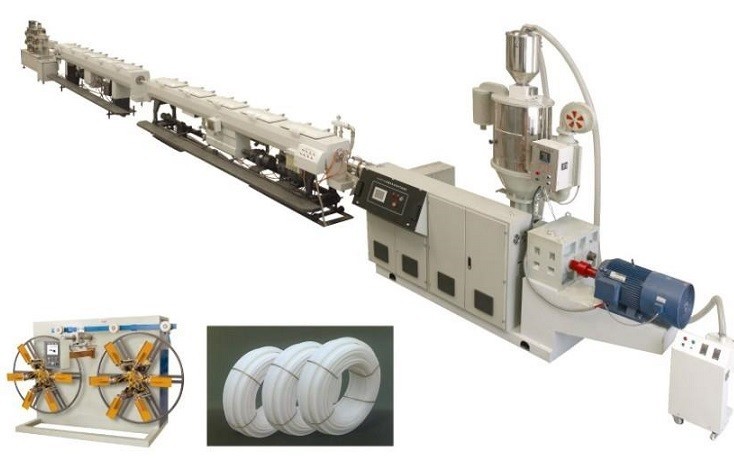

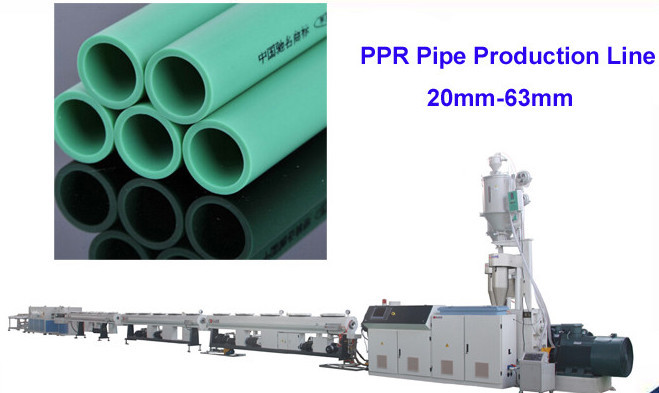

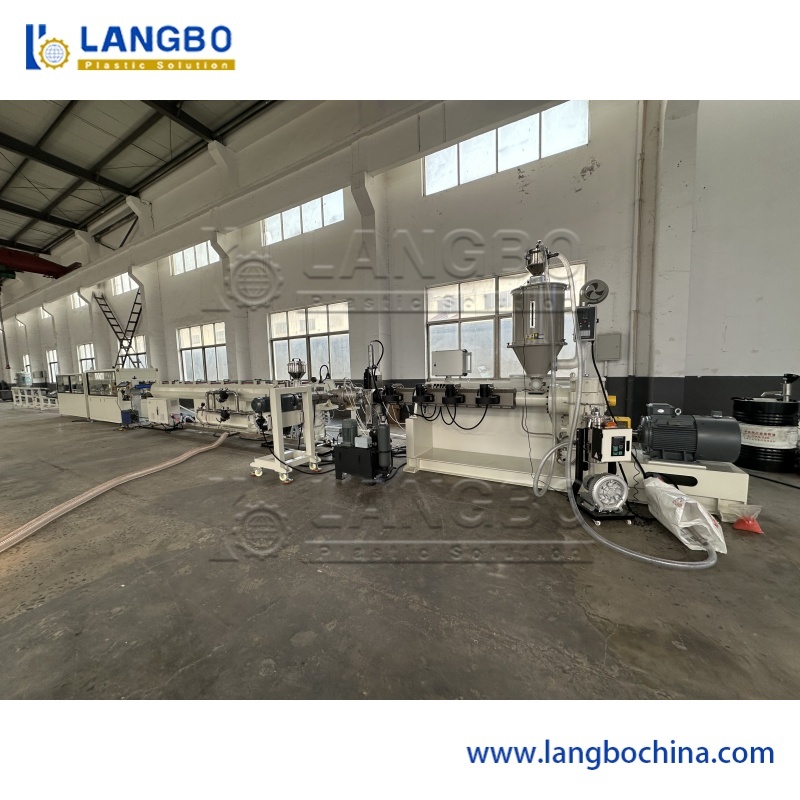

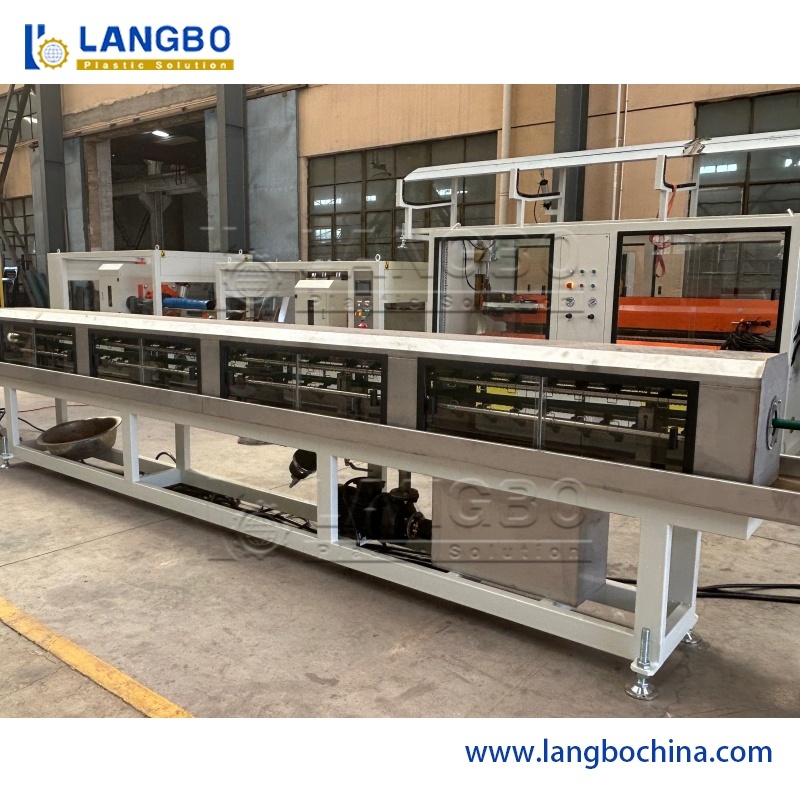

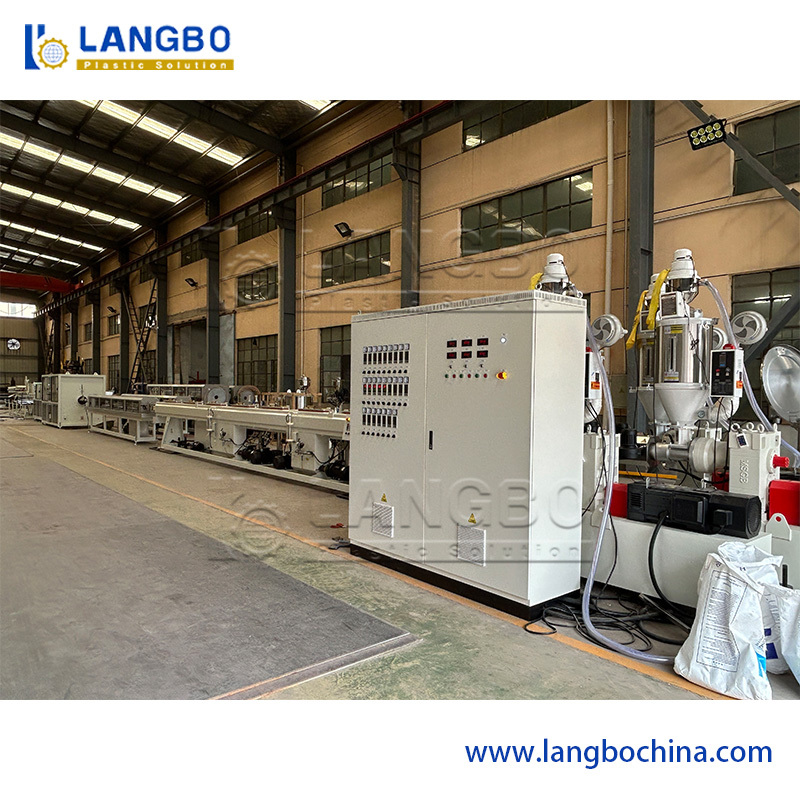

低い電力の消費が付いている自動単一ねじPPR管の放出ライン
製品詳細
| ハイライト |
ppr の管の生産ライン,機械を作るcpvcの管 |
||
|---|---|---|---|
製品説明

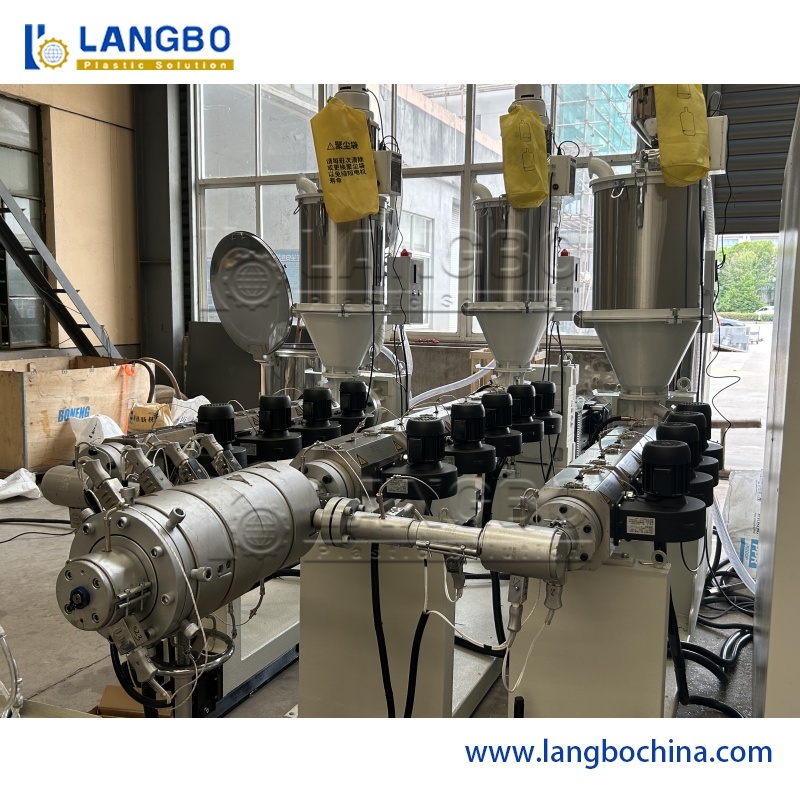

- バレルスクリュー,ギアトランスミッションシステム,測定可能な給餌,真空ガス化,加熱,冷却,電子制御部品から構成される
- 高精度な特殊なデジタルスクリューミラーによって製造されたスクリュー,高度に調和された挤出特性を備える
- 柔らかい材料の剪定と切断のための先端の変形ピッチと深さスクリュー生産技術
- 専用設計の配送箱 駆動寿命の延長のために完全に輸入された引力力ベアリング
- 低騒音,安定した動作,高い負荷容量,長寿命で特徴的なギア駆動
- 高出力,優れた可塑性,低エネルギー消費の先進的な設計
| 製品名 | スクロール直径 (mm) | L/D | モーターの電源 kW | スクロール速度 (r/min) | 最大出力 (kg/h) |
|---|---|---|---|---|---|
| SJ25/25 | 25 | 25:1 | 1.5 | 100 | 3.4 |
| SJ30/25 | 30 | 25:1 | 5.5 | 125 | 12.5 |
| SJ45/25 | 45 | 25:1 | 7.5 | 100 | 20 |
| SJ45/30 | 45 | 30:1 | 15 | 145 | 40 |
| SJ45/30 | 45 | 30:1 | 30 | 185 | 120 |
| SJ65/25 | 65 | 25:1 | 22 | 100 | 60 |
| SJ65/30 | 65 | 30:1 | 30 | 105 | 80 |
| SJ65/30 | 65 | 30:1 | 45 | 120 | 120 |
| SJ75/30 | 75 | 30:1 | 90 | 120 | 350 |
| SJ90/25 | 90 | 25:1 | 55 | 120 | 150 |
| SJ90/30 | 90 | 30:1 | 90 | 94 | 250 |
| SJ120/25 | 120 | 25:1 | 90 | 94 | 350 |
| SJ120/30 | 120 | 30:1 | 110 | 94 | 350 |
| SJ120/33 | 120 | 33:1 | 250 | 94 | 800 |
| SJ150/30 | 150 | 30:1 | 132 | 50 | 350 |
製品のハイライト
オートマティック・シングルスクロール・PPR・パイプ・エクストルーションライン 製品概要 自動単回螺旋型PPRパイプエクストルーションライン/低消費電力で効率的なプラスチックパイプの生産のために設計されたプラスチックエクストルーション機械 基本規格 状態: 新しい スクロール設計: シングルスクロール ブランド名: シンヤオ パワー: 0.75-2.2kW 出力: 3〜10kg/h 温度制御: RKCかオムロンか 適用: プラスチックパイプ 自動グレード: オートマティック モデル番号: SJシリーズ 電圧: 380V,3フェーズ 50Hz 認証: CE ISO 申請 この機械は主にPP,PE...
