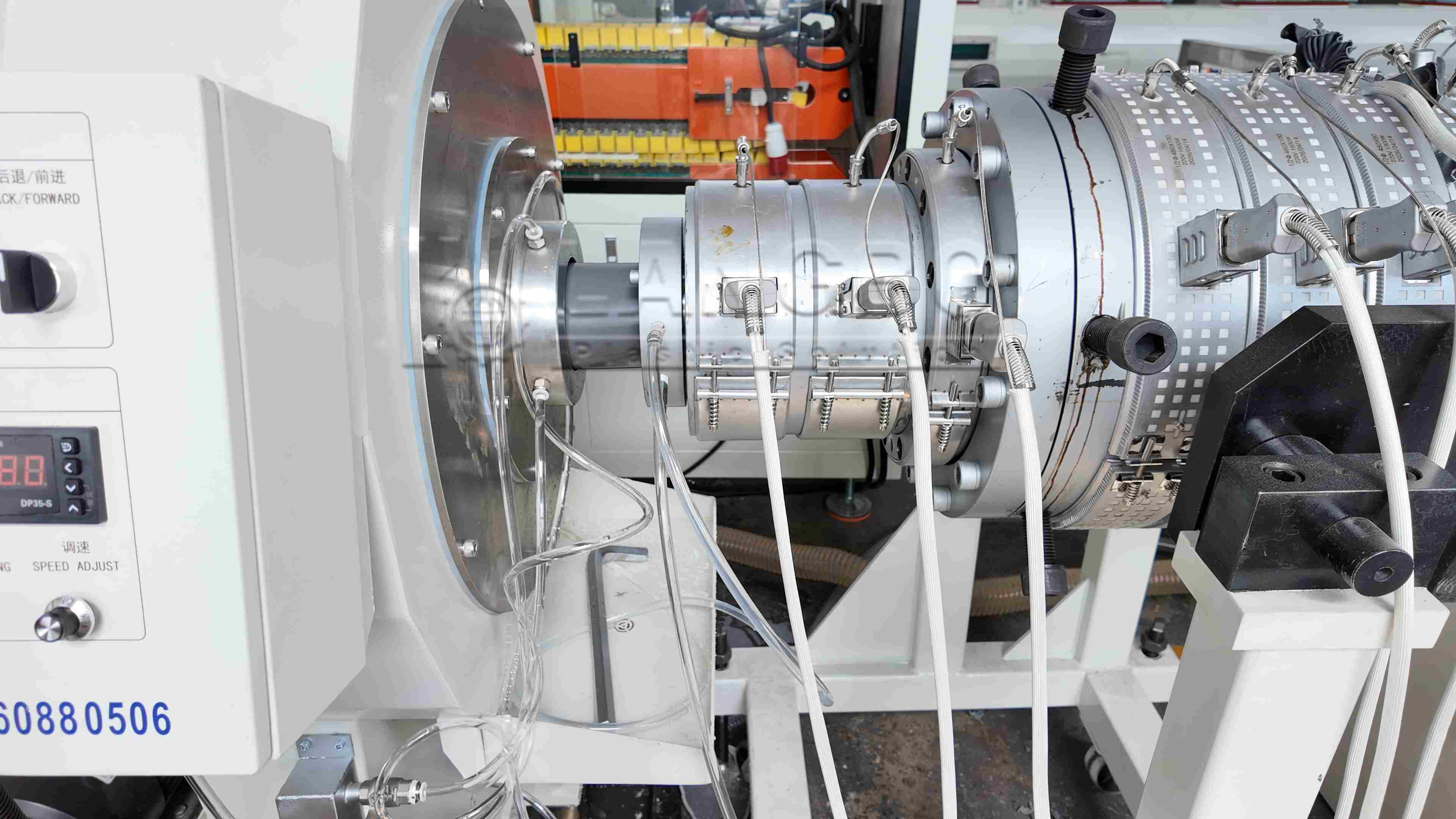

400mm PVC Pipe Extrusion Line in Egypt Municipal Project

400mm PVC Pipe Extrusion Line in Egypt Municipal Project

Project Overview

LangBo Machinery has completed the delivery and commissioning of a 400mm PVC Pipe Extrusion Line for a customer in Egypt.

Customer Company: Nile Delta Construction Materials Co.

Customer Name: Engineering Procurement Department (Project Technical Team)

The production line is applied in municipal infrastructure projects, mainly for urban drainage pipelines, underground sewage systems, and stormwater transportation networks.

The project focuses on dimensional stability control of large-diameter PVC pipes under high ambient temperature conditions.

Application Background

The customer is involved in municipal infrastructure supply for urban expansion projects in Egypt, where pipeline systems require:

• Long-distance underground installation
• Stable socket joint connection
• Continuous pipe production consistency
• Adaptation to high-temperature construction environments

In 400mm PVC pipe production, the customer identified key issues related to:

• Cooling shrinkage variation during forming
• Ovality deviation affecting pipe connection accuracy
• Diameter fluctuation in continuous extrusion
• Wall thickness inconsistency in large-diameter production

These factors directly affect field installation efficiency and pipeline sealing performance.

Technical Challenges

During operation of the 400mm PVC Pipe Extrusion Line, the following engineering challenges were observed:

1. High Ambient Temperature Influence

   In Egypt’s climate conditions, reduced cooling temperature difference slows heat dissipation during pipe forming.

2. Large Diameter Cooling Shrinkage Behavior

   400mm PVC pipes exhibit more pronounced thermal stress differences between inner and outer layers.

3. Vacuum Calibration Sensitivity

   Small fluctuations in vacuum pressure can lead to diameter variation or ovality deviation.

4. Synchronization Between Extrusion and Haul-Off

   Speed mismatch may cause tensile stress variation during cooling shrinkage phase.

Technical Solution by LangBo

To address these challenges, LangBo configured a process-optimized 400mm PVC Pipe Extrusion Line with integrated control systems:

• Conical Twin Screw Extrusion System

  Ensures uniform plasticization of PVC-U material before die entry.

• Optimized 400mm Die Head Flow Channel

  Improves melt distribution consistency across the pipe circumference.

• Multi-Stage Vacuum Calibration System

  Provides step-by-step outer diameter support during initial cooling.

• Zoned Cooling Water Circulation System

  Controls temperature gradient to reduce shrinkage instability.

• PLC Synchronized Control System

  Coordinates extrusion and haul-off speed to maintain continuous dimensional consistency.

Project Performance

After commissioning, the system achieved stable production of 400mm PVC pipes for municipal applications.

Key operational characteristics include:

• Improved dimensional consistency across pipe sections
• Controlled cooling shrinkage behavior under high-temperature conditions
• Stable socket connection geometry for field installation
• Continuous extrusion stability for long production cycles

The system is suitable for infrastructure-grade pipeline manufacturing requirements.

Application Scope

The produced 400mm PVC pipes are used in:

• Urban stormwater drainage systems
• Municipal sewage pipeline networks
• Underground infrastructure projects
• Industrial wastewater transportation systems

Conclusion

This project demonstrates that large-diameter PVC pipe production is not only dependent on extrusion capacity, but also on the coordinated control of:

• Cooling shrinkage behavior
• Vacuum calibration stability
• Extrusion-haul-off synchronization

LangBo’s 400mm PVC Pipe Extrusion Line provides a structured engineering solution for municipal pipeline manufacturing under high-temperature environmental conditions in Egypt.
