Plastic Grinder Crusher Machine for Recyclable Waste LDPE LLDPE PE Plastic Chopper

1セット
MOQ
USD, EUR
価格
Plastic Grinder Crusher Machine for Recyclable Waste LDPE LLDPE PE Plastic Chopper
特徴 ギャラリー 製品の説明 評価とレビュー 見積依頼
特徴
仕様
容量: 100〜500KG/HR
廃棄されたプラスチック: 廃棄されたパイプまたはプロフィール
最終製品: 小粒子
モーター出力: 37KW
ハイライト:

plastic grinder crusher machine for LDPE

,

LLDPE plastic chopper for recycling

,

PE plastic waste crusher machine
基本情報
起源の場所: Zhangjiagang
ブランド名: LB
証明: CE, ISO
モデル番号: LB300-500 について
お支払配送条件
パッケージの詳細: 標準パッケージ
受渡し時間: 60営業日
支払条件: LC、T/T
供給の能力: 1セット
製品の説明
For PVC pipe and profile extrusion factories, this crusher machine is essential equipment. Before normal production begins, significant amounts of plastic waste are generated during setup. Instead of discarding this material and increasing production costs, our crushing machine processes wasted plastic into small particles that can be reused in the extrusion process to create new plastic products.
Key Applications
This plastic shredder crusher is specifically designed for recycling operations in PVC pipe manufacturing, profile extrusion facilities, and plastic recycling plants. It efficiently processes production waste and scrap materials for reuse in manufacturing cycles.
Product Features
  • Specialized blades optimized for crushing pipes (PP-R, PE, PVC)
  • Reinforced steel body and clamping blade design prevents machine cracking
  • Stepped blade configuration increases shearing strength and crushing efficiency
  • Movable screen design allows easy assembly, disassembly, and cleaning
  • Sound separation layer in feeding door reduces operational noise levels
High-Efficiency Design
Our crushers feature customized blade structures tailored to specific materials and product forms to ensure optimal crushing efficiency. For example, PE/PP film crushers utilize V-shaped blade configurations, while our complete recycling systems include float washing tanks with multiple rollers, friction washers operating at 1200 RPM for pre-washing, and dewatering machines spinning at 1500 RPM to achieve final moisture content of 5-8%.
Technical Specifications
Model C400 C600 C700 C800 C1000 C1200
Crushing chamber (mm) 300×400 500×520 650×720 710×800 650×1000 800×1200
Motor power (kW) 18 22 37 55 75 110
Rotor diameter (mm) 420 500 560 600 630 730
Fixed knife (pcs) 2 4 4 4 4 4
Rotor knife (pcs) 8 8 8 8 10 10
Diameter of screw (mm) 10 12 12 12 12 12
Product Gallery

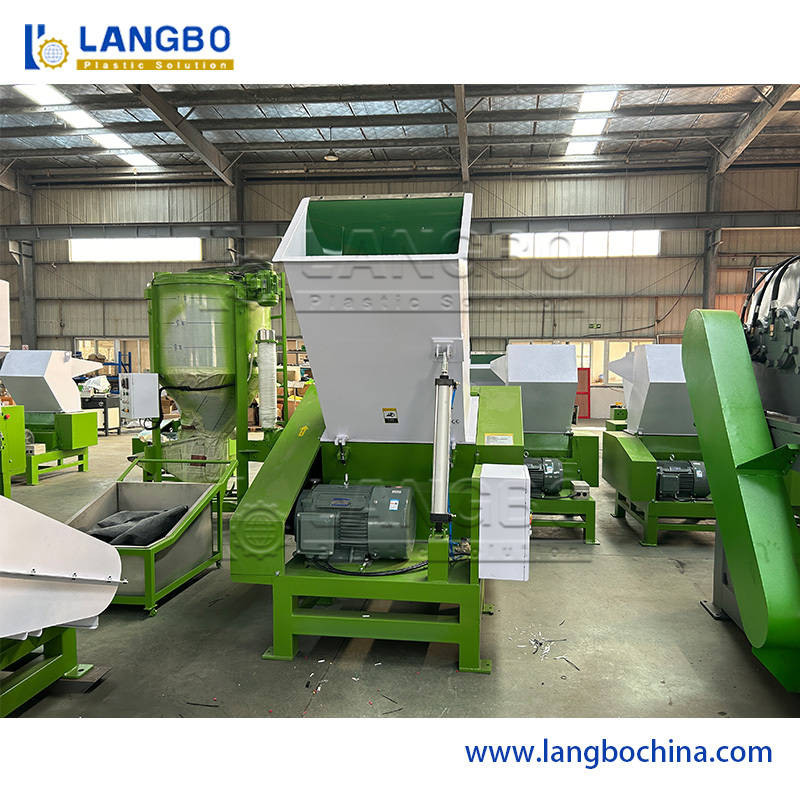

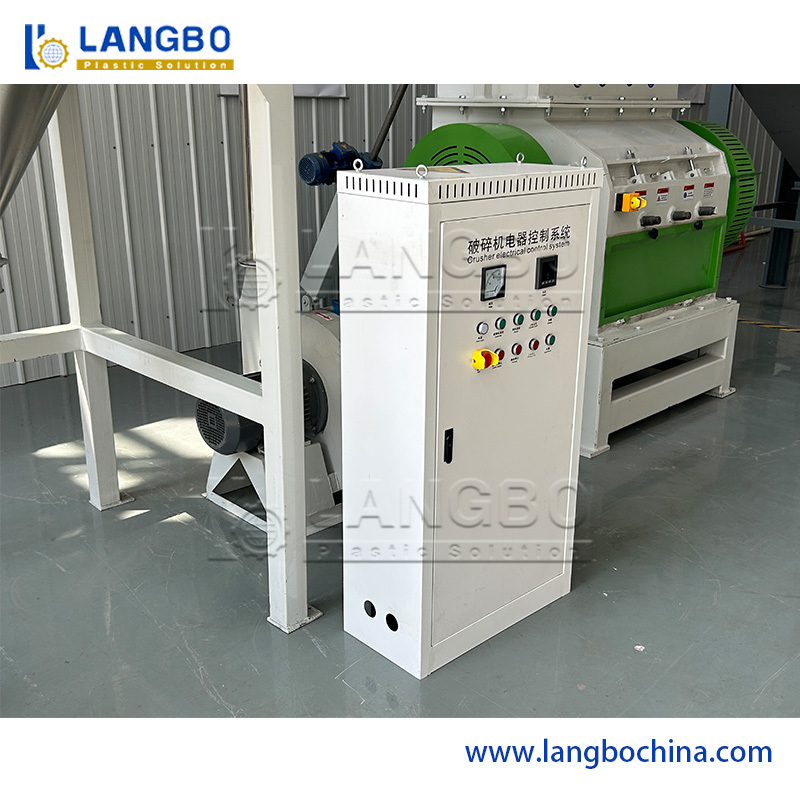

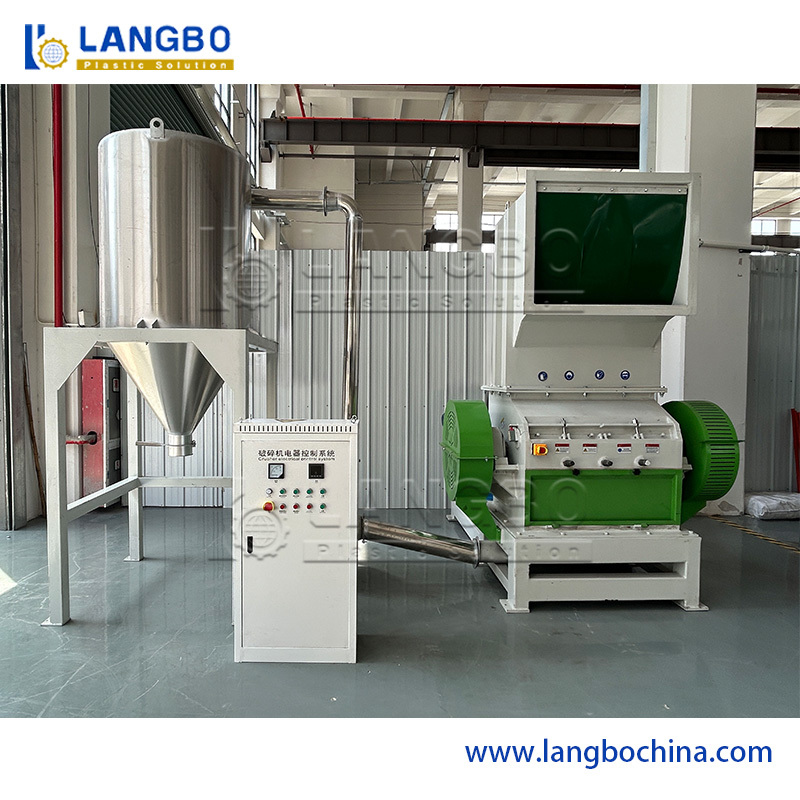

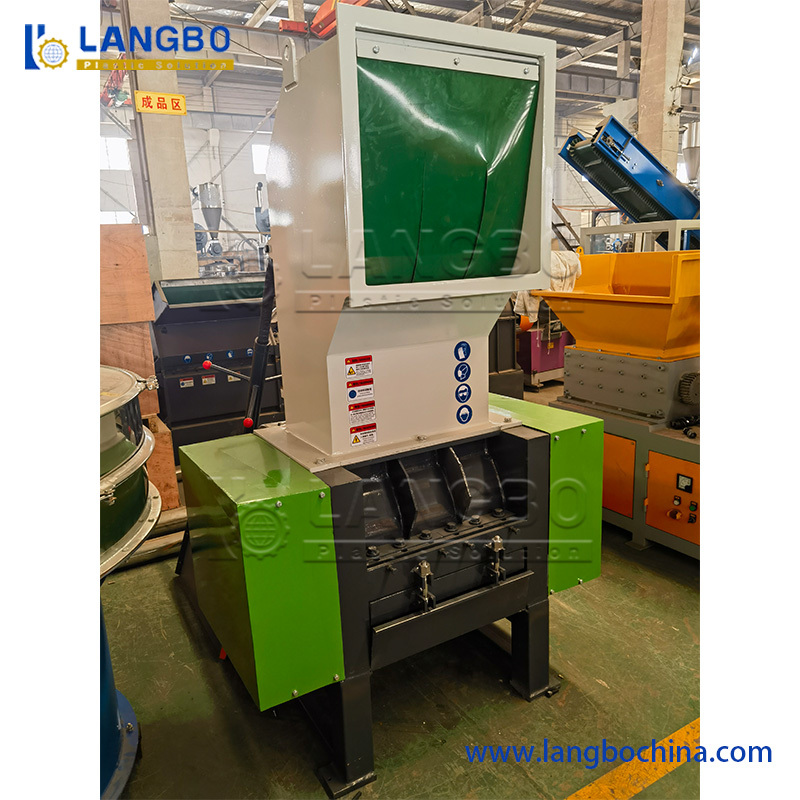

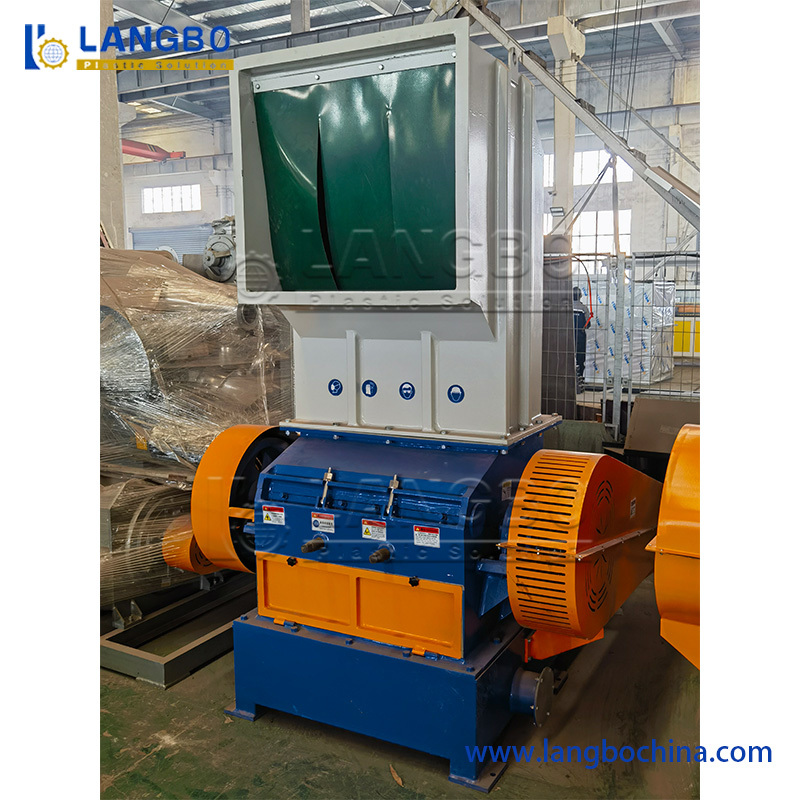

Plastic Grinder Crusher Machine for Recyclable Waste LDPE LLDPE PE Plastic Chopper 0 Plastic Grinder Crusher Machine for Recyclable Waste LDPE LLDPE PE Plastic Chopper 1 Plastic Grinder Crusher Machine for Recyclable Waste LDPE LLDPE PE Plastic Chopper 2 Plastic Grinder Crusher Machine for Recyclable Waste LDPE LLDPE PE Plastic Chopper 3 Plastic Grinder Crusher Machine for Recyclable Waste LDPE LLDPE PE Plastic Chopper 4 Plastic Grinder Crusher Machine for Recyclable Waste LDPE LLDPE PE Plastic Chopper 5
Order & Delivery Information
Delivery: 30 days after order confirmation
Warranty: 12 months comprehensive coverage
Payment: T/T 30% advance, 70% before delivery
Packing: Standard export wooden cases
Customer Support Services
  • One-year comprehensive guarantee for entire machine
  • 24-hour technical support availability
  • Overseas installation and commissioning by our engineers
  • Post-warranty maintenance guidance and competitively priced spare parts
  • Comprehensive operator training services
